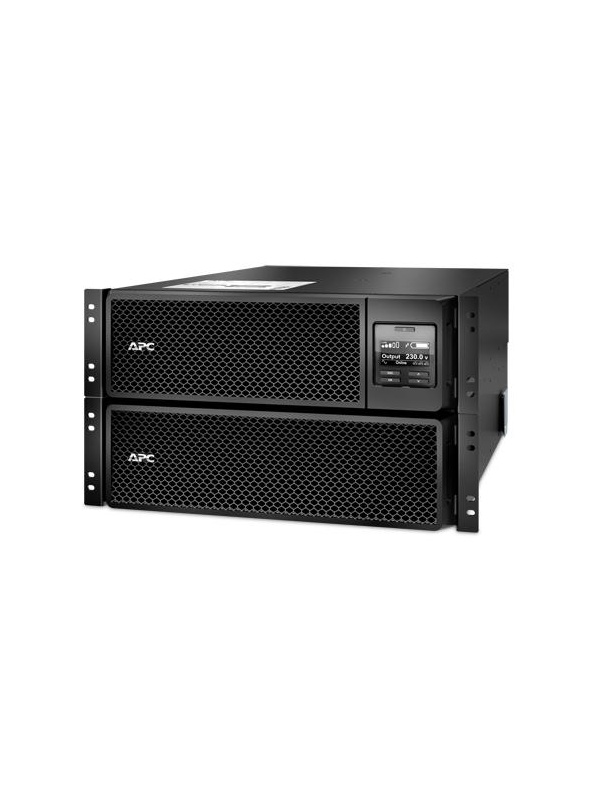

• APC Smart-UPS SRT 10000VA RM 230V - Img 1

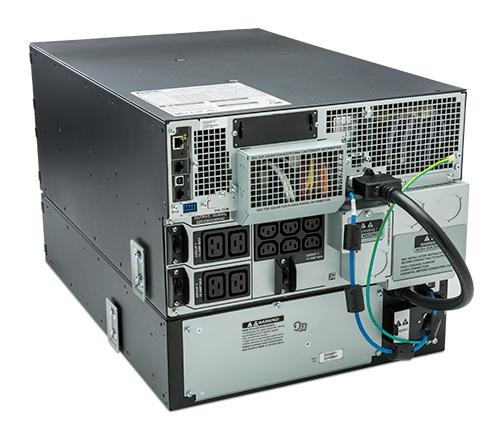

  • APC Smart-UPS SRT 10000VA RM 230V - Img 2

APC Smart-UPS SRT 10000VA RM 230V

53.561,19 RON (TVA inclus)
Costurile de livrare nu sunt incluse
de la 6.605,88 RON / Luna
Avans pe gustul tau
Cumpara acum, plateste mai tarziu de la 1.054,95 RON / Luna Detalii aici
Cod produs - SKU SRT10KRMXLI
EAN 731304304265
Produsul nu mai este disponibil in magazinul nostru.
Adauga la Favorite

Descriere

APC Smart-UPS SRT 10000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Output power capacity

10.0kWatts / 10.0kVA

Rack Height

6U

Output Connections

(3) IEC Jumpers (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

(4) IEC 60320 C19 (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)


Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Detalii

SKU
SRT10KRMXLI
EAN
731304304265
Categorii
UPS cu management
Brand
APC
Operating altitude
0 - 3000 m
Operating temperature (T-T)
0 - 40 C
LED indicators
Yes
Warranty card
Yes
Operating relative humidity (H-H)
0 - 95%
Temperature sensor
Yes
Quick installation guide
Yes
Rack mount kit
Yes
Display type
LCD
Output operation voltage (max)
240 V
Number of output phases
1
UPS topology
Double-conversion (Online)
Serial interface
Yes
Emergency Power Off (EPO)
Yes
Waveform
Sine
Surge protection
Yes
Audible alarm(s)
Yes
Battery life (max)
5 year(s)
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Output operation voltage (min)
220 V
Auto-restart
Yes
Storage temperature (T-T)
-15 - 45 C
Non-operating altitude
0 - 15000 m
Software CD
Yes
SmartSlot
Yes
Noise level
55 dB
Input operation voltage (min)
100 V
Input frequency
40 - 70 Hz
Crest factor
3:1
AC outlet types
C13 coupler, C19 coupler
Serial interface type
RJ-45
Typical backup time at full load
3.8 min
Typical backup time at half load
11.5 min
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Rack capacity
6U
Output power capacity
10 kVA
Output power
10000 W
Input operation voltage (max)
476 V
Efficiency
94.6%
Surge energy rating
480 J
Output voltage Total Harmonic Distortion (THD)
3%
Output frequency regulation
50/60 Hz
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Web/SNMP Management Card
Bracket
Yes
Number of output IEC jumpers
3
Power plug
Hardwire
AC outlets quantity
10 AC outlet(s)
Rackable
Yes
UPS-Management
Yes
Storage relative humidity (H-H)
0 - 95%
Battery recharge time
3 h
Sustainability certificates
ENERGY STAR
Total carbon footprint (kg of CO2e)
22873.91
Interface
RJ-45 10/100 Base-T
Cables included
USB cable
Package width
600 mm
Package height
461 mm
Package weight
130 kg
Width
43.2 mm
Depth
71.5 mm
Height
2.63 mm
Weight
111.8 kg
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
1805 VAh
Harmonized System (HS) code
85078000
Package depth
1000 mm
Form Factor
Rackmount/Tower
