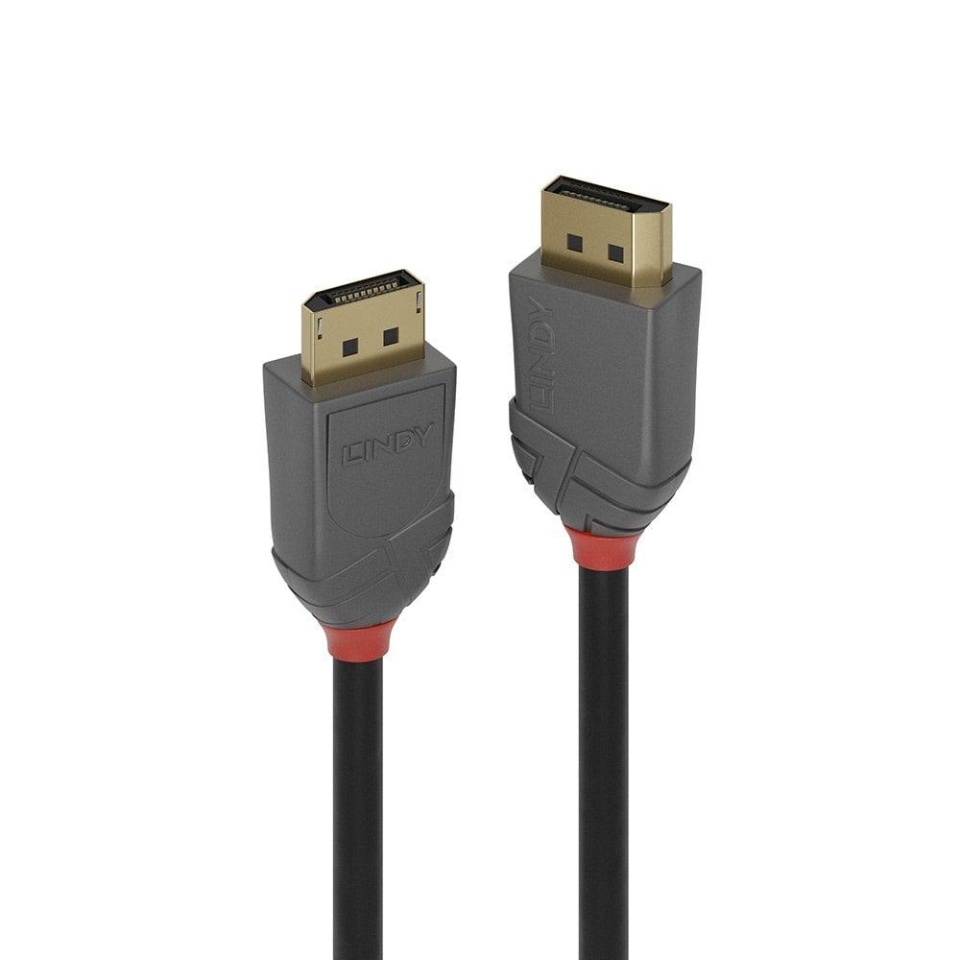

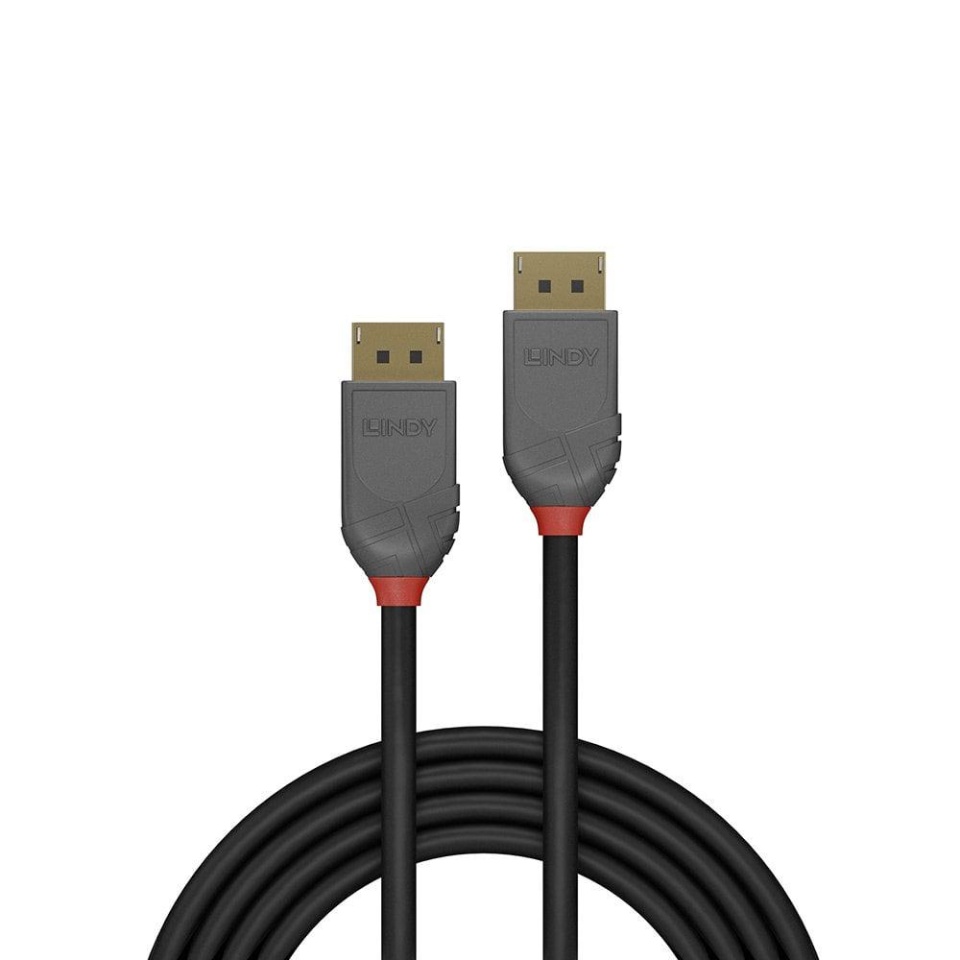

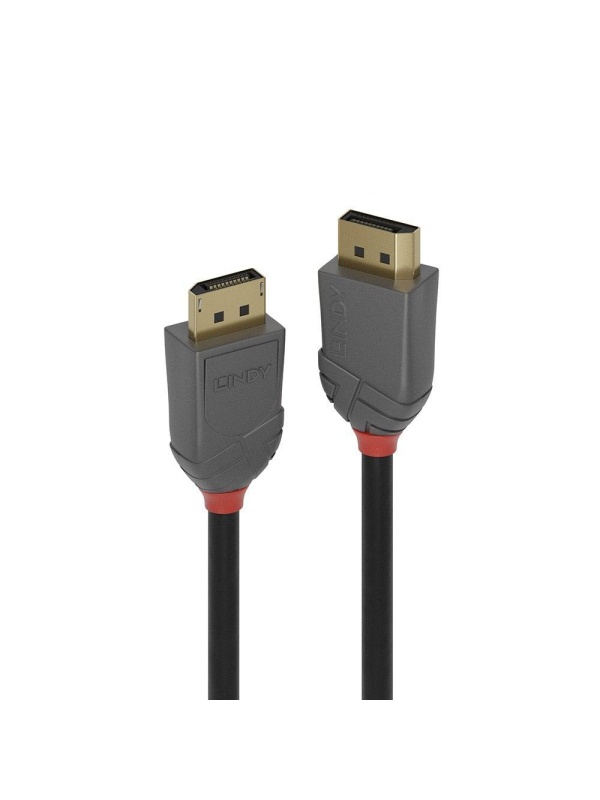

Cablu Lindy 1m DisplayPort 1.4, Anthra

55,39 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU LY-36481
EAN 4002888364812
Adauga la Favorite

Descriere

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold 15µm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 3µm
  • Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DisplayPort 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.3mm (0.29in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Copper Braid 65%

Detalii

SKU
LY-36481
EAN
4002888364812
Categorii
Accesorii foto si video
Brand
LINDY
DisplayPort version
1.4
Maximum refresh rate
60 Hz
Plug and Play
Yes
Maximum resolution
7680 x 4320 pixels
Cable type
Round cable
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
Jacket material
Polyvinyl chloride (PVC)
Cable length
1 m
Storage temperature (T-T)
-25 - 85 C
Operating temperature (T-T)
-20 - 80 C
AWG wire size
28
Connector 1
DisplayPort
Connector 2
DisplayPort
Certification
RoHS, REACH, UL
Contact material
Phosphor bronze
Connector material
Gold
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Cable diameter
7.3 mm
Cable material
Tinned copper
Cable shielding
Copper
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Colour sampling
4:2:2
Nominal attenuation
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Supported graphics resolutions
4096 x 2160, 7680 x 4320
Bend radius (min)
5.84 cm
Package type
Polybag
Data transfer rate
32.4 Gbit/s
Product colour
Black, Grey
Harmonized System (HS) code
84733080
