CREATIVE Sound Blaster Audigy FX v2 - PCIe SoundCard (retail)

Descriere

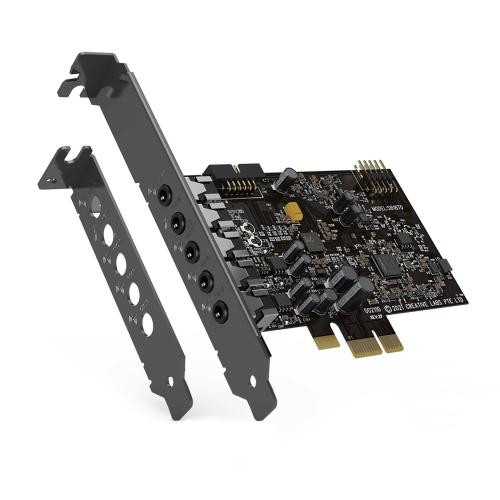

SOUND BLASTER AUDIGY FX V2

Upgradable Hi-Res 5.1 PCIe Sound Card with SmartComms Kit

Bridging the gap between performance and value, our all-new Sound Blaster Audigy Fx V2 introduces pristine audio fidelity, advanced audio processing

through Sound Blaster Acoustic Engine, and our latest audio innovation–SmartComms Kit–a suite of smart communication features designed to improve

the way you communicate online.

With professional audio now made personal, the Sound Blaster Audigy Fx V2 is the perfect addition to your gaming or cinematic rig! It features 5.1

surround sound, high-quality audio with 120 dB SNR, and high-resolution 24-bit 192 kHz playback.

You can also choose to further enhance the audio performance of your PC with Sound Blaster Audigy Fx V2 DBPro–an optional daughterboard expansion

with upgrades such as DSD256 playback support, added side channels for full 7.1 discrete surround, as well as the addition of an optical-out port.

Technical Specifications

Interface / Power / Profile • PCI-e 1x – 16x Bus

• Half-height profile (Full height and half height brackets provided)

Color • Black

DAC Specs • Dynamic Range: 120 dB

• THD+N: ≤0.004%

Playback Resolution

DSP/Direct Mode

• Headphone (Stereo)

• PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• Line Out (Stereo / Surround)

• PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• Optical Out (Stereo) *

• PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

DSD Playback ^

• Headphone/Line Out (Stereo)

• Native DSD: DSD64, DSD128, DSD256

• DoP: DSD64

Recording Resolution

• Mic-in (Mono)

• Mono, 16-bit, 44.1, 48.0, 88.2, 96.0 kHz

• Mono, 24-bit, 44.1, 48.0, 88.2, 96.0 kHz

• Line-in (Stereo)

• Stereo, 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

• Stereo, 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz

Headphone Amp • Output Impedance: 10Ω

• Supported Headphone Impedance: 32 - 600Ω

Connectivity

• 1 x ⅛“ Mic In

• 1 x ⅛“ Line In

• 1 x ⅛“ Headphone/Headset Out/Front Out (default as Headphone/Headset)

• 1 x ⅛“ Rear Out

• 1 x ⅛“ Center/Sub Out

Others • WHQL for Windows Driver

• Supports ASIO 2.3, WASAPI

Operating Temperature • 0°c to 45°c

Software

Windows • Creative App with SmartComms Kit (Download at creative.com/support/sbfxv2)
