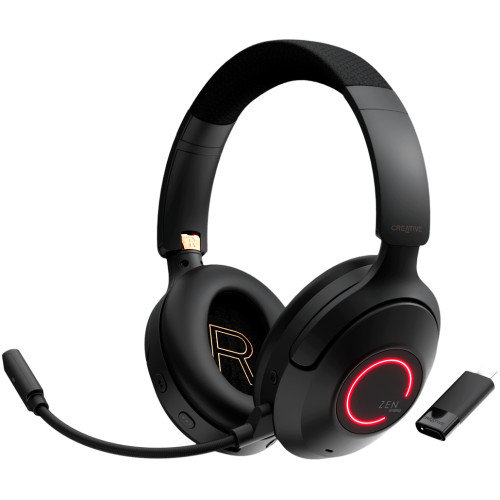

Creative Zen Hybrid Pro SXFI - BT-L4 Bluetooth LE Audio

Descriere

Creative Zen Hybrid Pro SXFI

Technical Specifications

Headset Model No • EF1040

Product Color • Black

Headphone Drivers

• Custom Tuned 40 mm Titanium Driver

• Frequency Response: 20–20,000 Hz

• Sensitivity: 117 dB

• Impedance: 32 ohms

Built-in Microphones

• Type: Omni-directional x 5

• Frequency Response: 100-10,000 Hz

• Sensitivity: -42 dBV/Pa

• Impedance: 2.2 kohm

Bluetooth version • Bluetooth 5.3

Bluetooth LE Audio Modes • Unicast (CIS) mode

• Broadcast (BIS) mode

Bluetooth Profiles

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (Audio / Video Remote Control Profile)

• HFP (Hands-free Profile)

Audio Codec • LC3+ (ULL), LC3, AAC, SBC

Bluetooth Operating

Frequency • 2402-2480MHz

Wireless Operating Range • Up to 15m / 49.2 ft, measured in open space. Walls and structures may affect range of

device.

Maximum RF Output Power • 8 dBm

Voice Assistant Support • Siri and Google Assistant

Battery Type • 1 x Rechargeable Lithium-ion Polymer Battery 3.7V 850 mAh

Input Rating • 5V 1.0A

Playtime¹ • Up to 100 Hours (ANC OFF)

• Up to 80 Hours (ANC ON)

Charging Interface • USB C (Charging)

Charging Time

• 1.5 to 2 hours

• 5 mins charge for 2 hours of playtime (LED ON, ANC ON)

• 5 mins charge for 3 hours of playtime (LED ON, ANC OFF)

• 5 mins charge for 5 hours of playtime (LED OFF, ANC ON)

• 5 mins charge for 8 hours playtime (LED OFF, ANC OFF)

Operating Temperature • 0°C to 45°C

Product Measurement • Dimension (L x W x H): 79.8 x 151.2 x 184.1 mm / 3.14 x 5.95 x 7.25 inches

• Weight: 282g (9.95 oz)

Accessories Measurement • USB-C Cable Length: 0.8m / 2.62 ft

• USB-C Cable Weight: 15g (0.53 oz)

Creative Application

iOS • iOS 11 and above

• Download at Apple App Store

Android • Version 7.0 and above

• Download at Google Android Play Store

Windows • Creative BT-L4 via USB 2.0 port

• Download at creative.com/support/zenhybridpro

+

Creative BT-L4

Technical Specifications

Model No • SA0200

Bluetooth Version • Bluetooth 5.3

Bluetooth LE Audio

Modes

• Unicast (CIS) Mode

• Broadcast (BIS) Mode

Supported Audio

Codecs • LC3+ (ULL), LC3

Input Rating • 5V 0.5A

Proprietary Technology

• Super X-Fi Spatial Technology

• SXFI BATTLE Mode

• Scout Mode

Wireless Operating

Range

• Up to 10m / 33 ft, measured in open space. Walls and structures may affect

range of device.

Maximum RF Output

Power • 10 dBm

Wireless Frequency • 2402-2480 MHz

USB Audio Resolution • Up to Stereo 24-bit / 96 kHz

Wireless Playback

Resolution

• Up to Stereo 24-bit / 96 kHz via ULL

• Up to Stereo 16-bit / 48 kHz via LC3

Dimensions (L x W x H) • 44 x 16 x 7 mm / 1.7 x 0.6 x 0.3”

Weight (g) • 5g / 0.17 o
