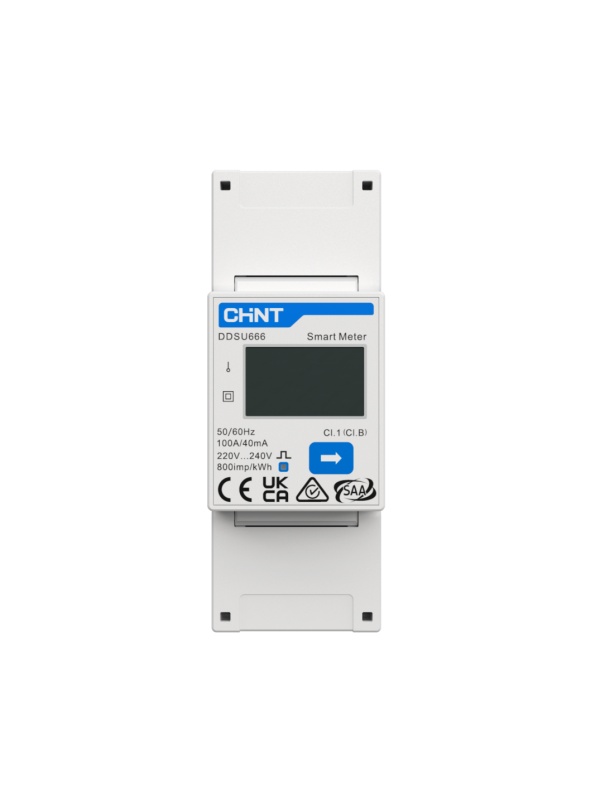

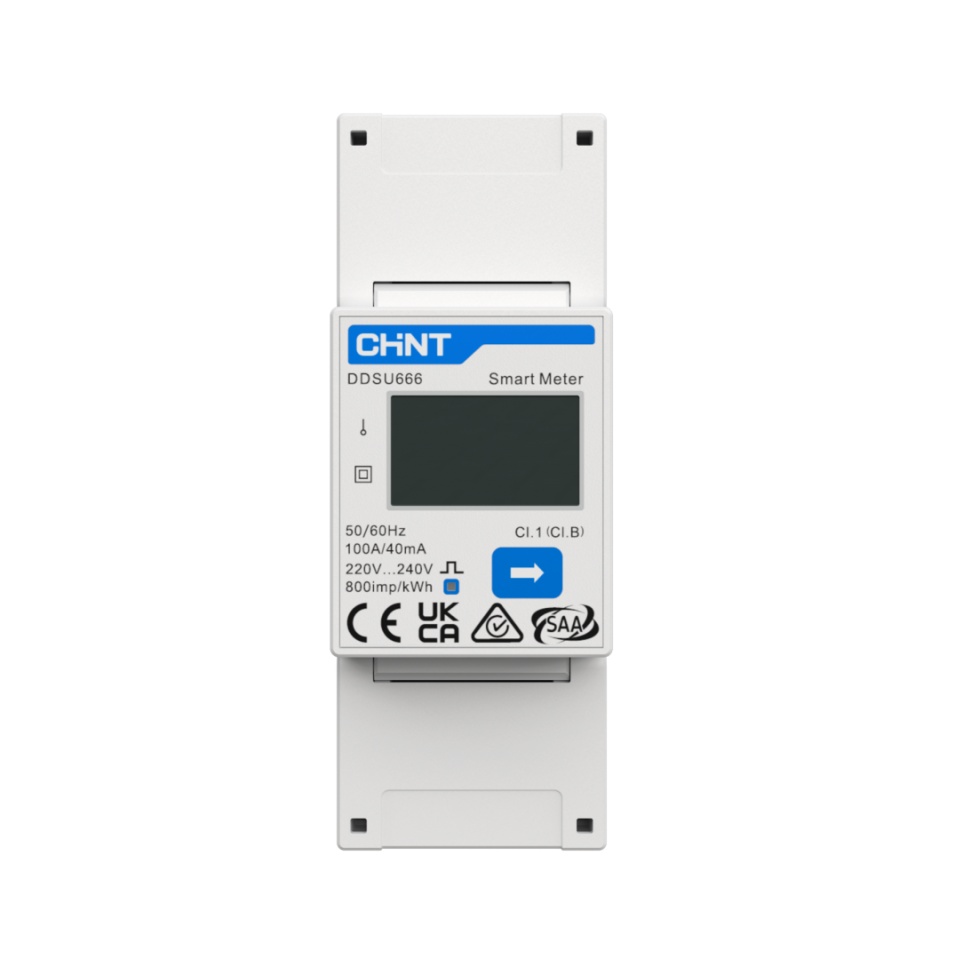

HYXi 1P SMART METER DDSU666 100A

Descriere

"Measurement:

-Compliance with EN 50470-1/-3 standard

-Connection type: 1P2W

-Accuracy: Direct: Class B/ 1.0

-Constant: Direct:800imp/kWh

Voltage:

-Nominal Voltage(Un): 220V...240V

-Operating Range: 0.9Un~1.1Un

Current: Direct, 0.25-5(80)A

Frequency: 50Hz or 60Hz

LCD Display:

-6 characters of 7 segment display

-Digital size: 5.9mm×12.4mm

LED Indication: Pluse Output

Communications:

-RS485,Modbus-RTU

-Baud Rate:1200bps,2400bps,4800bps, 9600bps(default), 19200bps

Measured Values:

-Import/ExportkWh, kvarh

-InstantaneouskW, kvar,kVA

-Irms, Vrms, Frequency, Power factor,etc

Environmental:

-Operating Temperature : 25 °C to +55 °C

-Storage Temperature : -35 °C to +70 °C

-Relative Humidity: ≤ 95%RH(non-condensing)

-Ingress Protection: IP20

Dimensions:

-Dimensions:100mm×36mm×36mm ×65.5mm

-Weight: 0.22 kg (Approx.)
