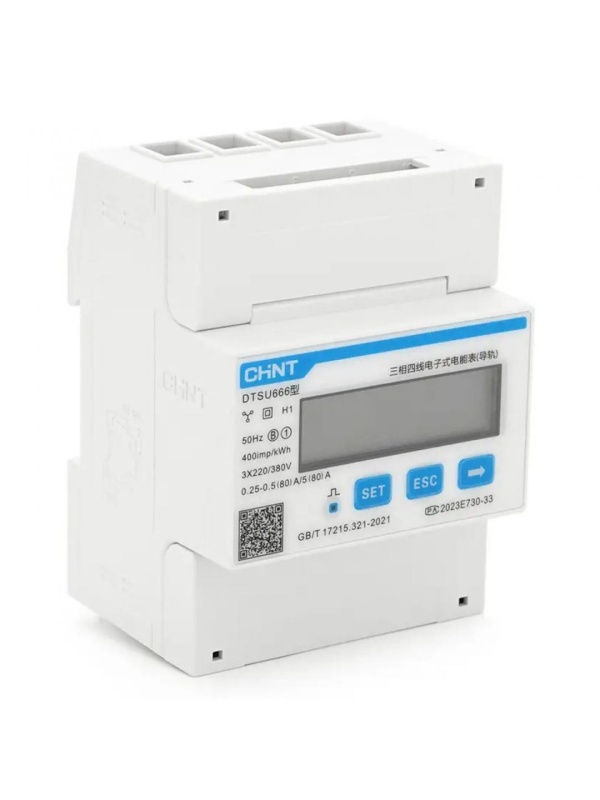

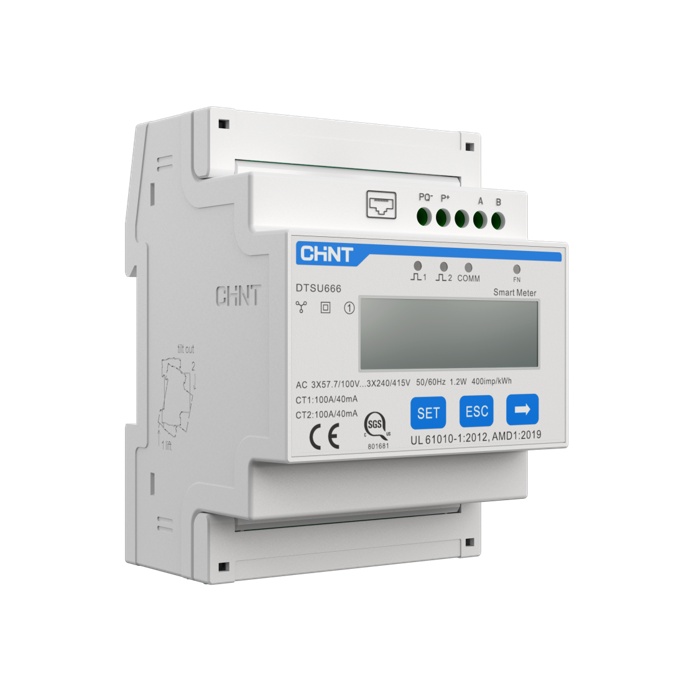

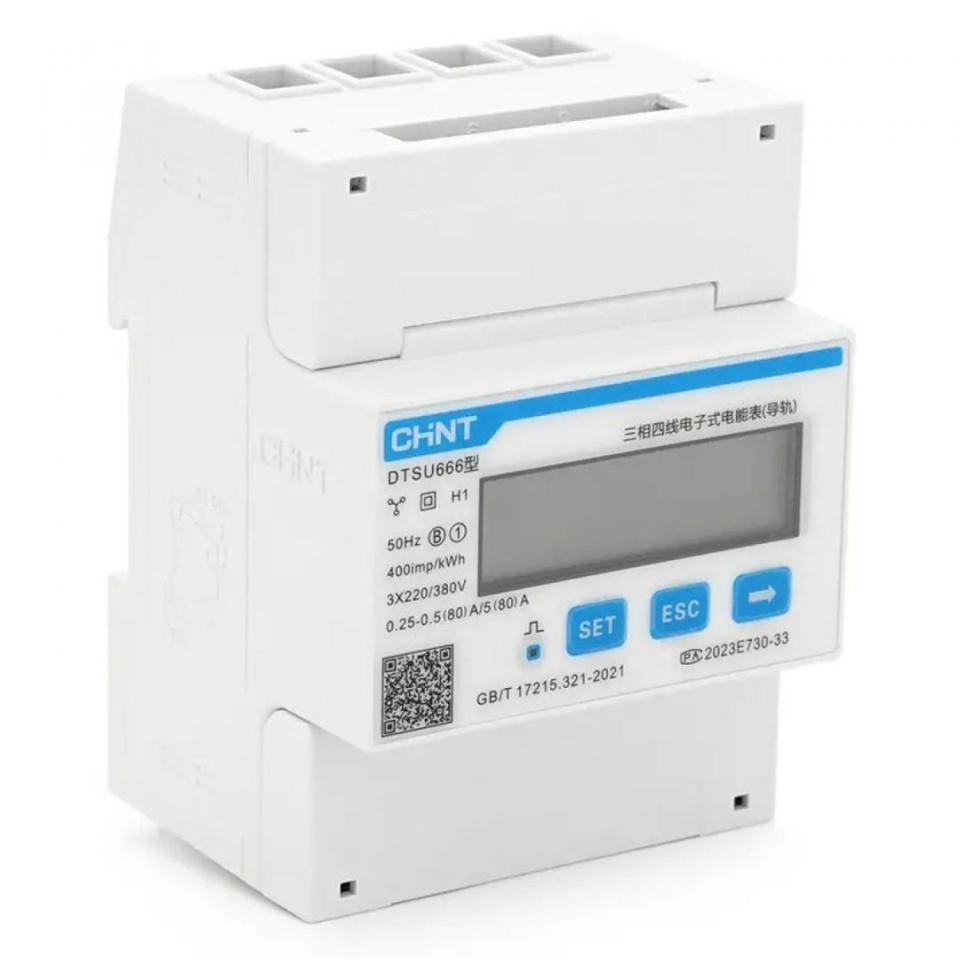

HYXi 3P SMART METER DTSU666-250A

Descriere

"Measurement:

-Compliance with EN 61326-1 EN 61010-1 standard

-Connection type: 3P4W(Three Phase four wire)

-Access Method:Via CT

Accuracy:

-Voltage: ±0.5%

-Current/Power:+0.5%

-Electric energy: +1%

Voltage:

- Nominal Voltage(Un): 3x220/380V...3×240/415V

-Operating Voltage: 207V ~ 253V

-Limited Voltage:184V ~ 264V

Current: 250A/50mA

Frequency: 50Hz or 60Hz

Display Interface:

-LCD

-With backlight

LED Indication: Pluse Output

Communications:

-Protocols: ModBus-RTU

-Interface: RS485

-Baud rate: 1200/2400/4800/4800 / 9600bps(default)19200/115200 bps(customizable)

Measured Values:

-Import/Export kWh, kvarh

-Instantaneous kW, kvar, kVA

-Irms, Vrms, Frequency, Power factor,etc

Environmental:

-Operating Temperature : -25°C~+55°C

-Storage Temperature : -40°C~ +70°C

-Relative Humidity: ≤95%(non-condensing)

-Atmospheric Pressure: 63.0kPa ~ 106.0kPa

Dimension:

-72mm×100mm×65.5mm

-Mounting Type:DIN35mm"
